Facade Lighting Design Techniques
Transforming building exteriors into nighttime landmarks with LED technology.
Facade Lighting Techniques
Professional facade lighting uses five core techniques: **Wall Washing** floods a surface evenly, ideal for flat facades. **Wall Grazing** is mounted close to the surface to accentuate texture (stone, brick, relief). **Uplighting** from ground level creates drama and height. **Silhouetting** lights behind elements to create dark outlines. **Spotlighting** highlights specific architectural features like columns, cornices, or signage.
Technique Selection Guide
| technique | mounting | beam | best for |
|---|---|---|---|
| Wall Washing | 0.3-1m from surface | Wide flood (60-120) | Flat glass, rendered walls, curtain walls |

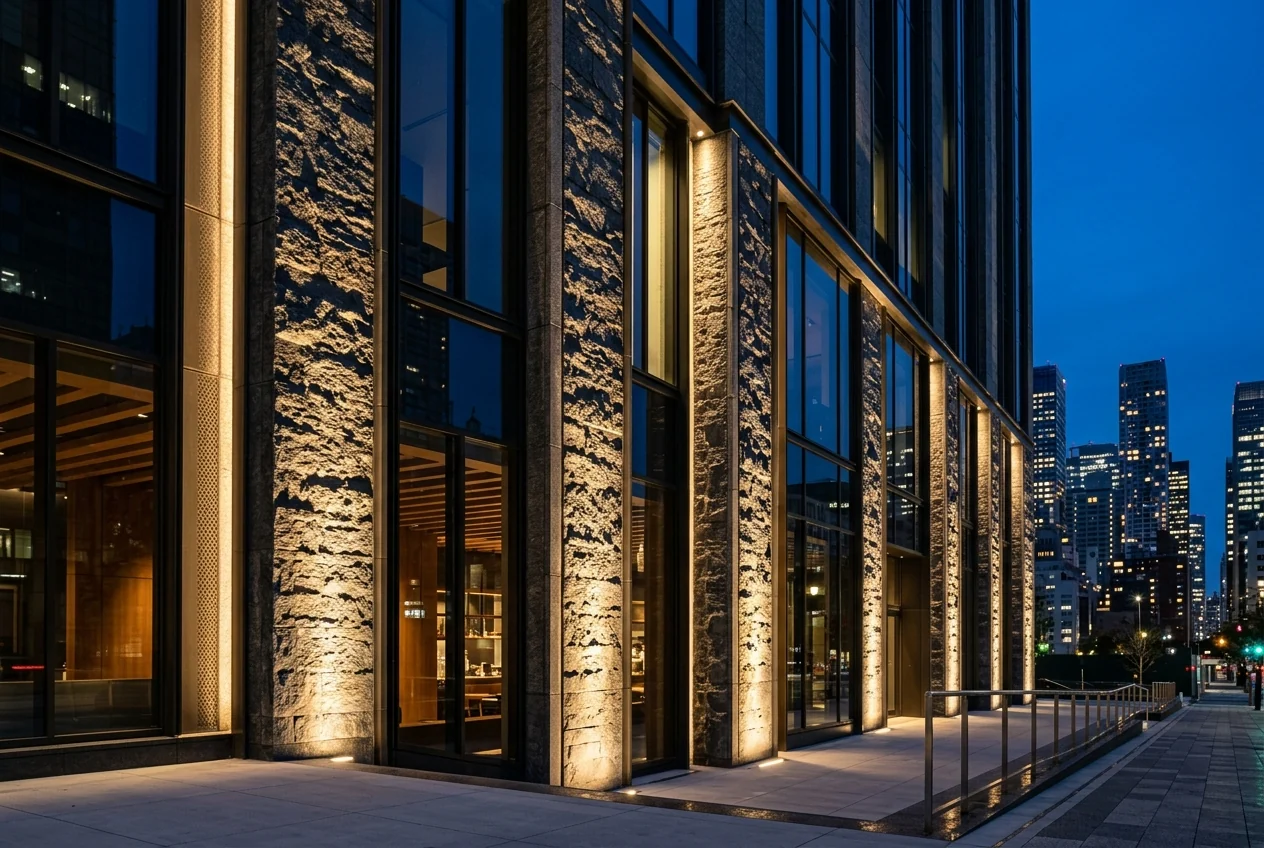

| Wall Grazing | 0.1-0.3m from surface | Asymmetric | Textured stone, brick, exposed concrete |
| Uplighting | Ground level, 1-3m from base | Narrow (10-25) | Columns, towers, vertical elements |
| Silhouetting | Behind subject | Wide flood | Sculptures, trees, translucent screens |
| Spotlighting | Remote, aimed at feature | Narrow spot (8-15) | Cornices, signage, ornamental details |
| Media Facade | Integrated into facade | Pixel-mapped | Dynamic content, branding, events |
Light Pollution & Dark Sky
Responsible facade lighting must minimize upward light waste. Use full cut-off fixtures that direct light only onto the building surface. Specify curfew timers that dim or switch off after midnight. Many municipalities now enforce IDA Dark Sky-compliant zoning. In the UAE, Abu Dhabi's Estidama Pearl Rating includes outdoor light pollution criteria.
Color & Dynamic Effects
**Static white** (2700-4000K) is the safest choice for elegant architecture. **RGBW fixtures** enable seasonal color changes and event branding. **DMX or DALI DT8** controls dynamic color sequences. For media facades, **pixel-mapped LED nodes** create video-like content across the building surface. Always consider neighbors and traffic: avoid rapid color changes near roads.
IP Rating & Durability
Facade fixtures must withstand weather, UV, and in the GCC, extreme heat and sandstorms. Minimum **IP65** for covered facades, **IP66** for exposed positions, **IP67** for ground-recessed uplights. Specify **marine-grade** stainless steel (316L) or powder-coated aluminum bodies. Silicone gaskets outperform rubber in UV resistance.
