LUTRON QUANTUM

SKU: LUTRON-QUANTUM

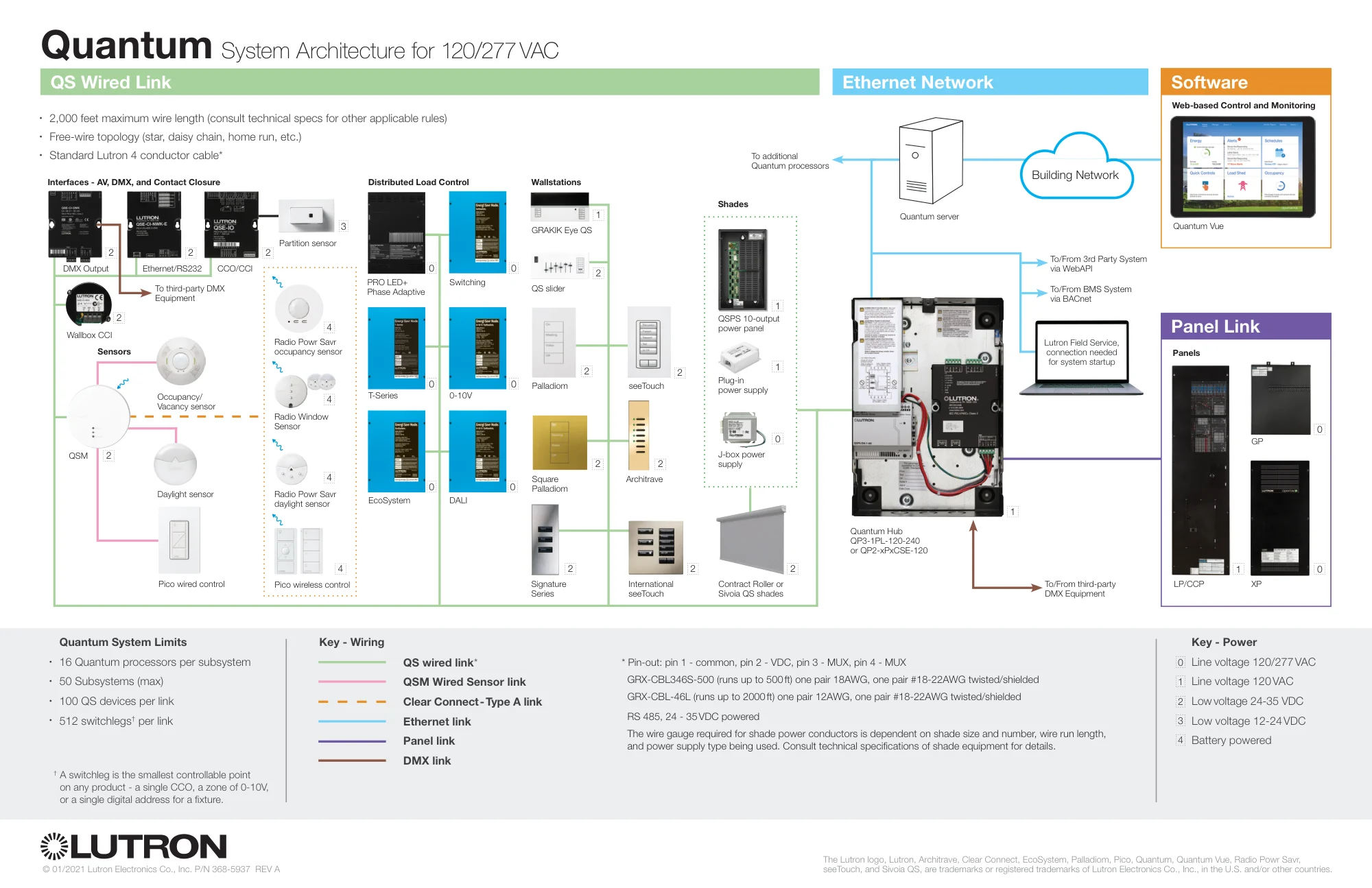

Quantum is Lutron’s whole-building Total Light Management platform: electric light, daylight and occupancy control managed as one system and reported through Quantum Vue. A Quantum system carries over 10,000 devices, assembled from subsystems of up to 16 processors, and brings together the QS wired link, the QSM sensor link, Clear Connect Type A wireless, Ethernet, the dimming panel link and DMX. GRAFIK Eye QS control units (3, 4 or 6 zones) handle single-room scenes inside the wider system, and every QS link supports up to 99 devices, 100 zones and 512 switch legs.

• Over 10,000 devices on a single Quantum system
• Up to 16 Quantum processors per subsystem, up to 50 subsystems
• QS link: 99 devices, 100 zones and 512 switch legs per link
• Links: QS wired, QSM sensor, Clear Connect Type A, Ethernet, panel link and DMX
• GRAFIK Eye QS control units in 3, 4 or 6 zone versions (3 PDU on the QS link)
• Quantum Vue for building-wide monitoring, reporting and analytics

Datasheet includes full specifications — share it with your consultant or contractor.
