Building Automation & Lighting Integration

Connecting lighting to BMS for energy management, scheduling, and smart building intelligence.

6 min LEDWORLD Technical Team 310 views

Building Automation & Lighting Integration

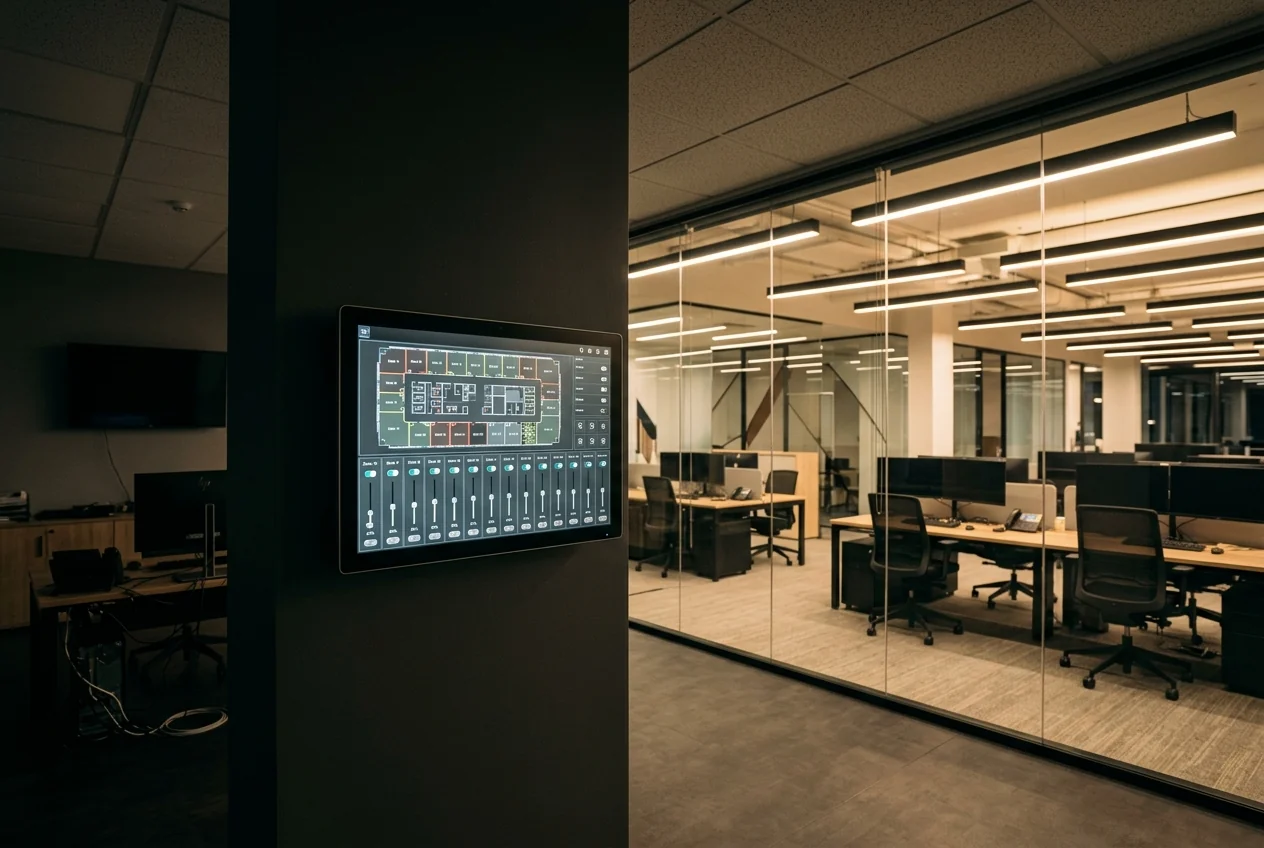

Building Management System showing lighting zone status across a commercial building floor plan.

BMS Integration Protocols

protocol	complexity	data	best for
DALI → BACnet gateway	Medium	Dimming, status, energy	Standard commercial
KNX → BACnet	Medium	Full scene + sensor data	Premium commercial
DALI → Modbus	Low	Basic dimming + on/off	Industrial, simple
Art-Net → BACnet	High	Color + dimming	Facade + BMS integration
API (cloud)	Medium	Full analytics	Modern smart buildings

The Three Levels of Integration

Level 1: Scheduling — BMS sends time-based on/off commands. Level 2: Scene control — BMS triggers lighting scenes based on occupancy and daylight. Level 3: Analytics — BMS collects energy data, fault reports, and optimizes operation. Most GCC commercial projects should target Level 2 minimum.

Energy Savings Potential

BMS-integrated lighting with occupancy and daylight sensors typically saves 30–50% of lighting energy compared to manual-only control. For a 10,000m² office in UAE, this translates to approximately AED 50,000–100,000 per year in electricity savings.

Before You Specify

Define integration level (scheduling / scenes / analytics)

Confirm BMS protocol (BACnet, Modbus, KNX)

Specify DALI-to-BMS gateway with correct protocol translation

Plan data points: which zones, what data, how often

Budget gateway hardware and commissioning separately

Coordinate early: lighting and BMS consultants must align

Common Mistakes

Lighting and BMS designed by different consultants without coordination

No gateway specified — DALI and BACnet don't speak the same language

Ordering integration gateway after BMS is commissioned — causes delays

Not defining data points early — results in basic on/off instead of scene control

Assuming 'smart building' = automatic — still needs programming and commissioning
