LUMIBRIGHT

LUMIBRIGHT ILUME-DIM LBTMG23 TRACK LIGHT 12W

SKU: LBTMG23

LUMIBRIGHT

LUMIBRIGHT ILUME-DIM LBTMG23 TRACK LIGHT 12W

SKU: LBTMG23

Lumibright ILUME-DIM LBTMG23 — magnetic light rated IP20, 12W, 800lm. Available through LEDWORLD, authorized Lumibright dealer in Dubai, UAE.

Technical Specifications

SKU	LBTMG23
Brand	LUMIBRIGHT
Wattage	12W
Color Temperature	3000K
Luminous Flux	800lm
Beam Angle	24°
IP Rating	IP20
Voltage	48VDC
CRI	≥80
Material	Aluminum
Finish	Black With Sand
Dimensions	L246xW22xH42mm

Qty:

Download Datasheet Book Consultation

Datasheet includes full specifications — share it with your consultant or contractor.

Specify The Whole Run

Track System Builder

Run length

Track heads

Connected load

72W

Track head

Lumibright Ilume-Dim LBTMG23 Track Light 12W

LBTMG23 · 12W each

×6

Track rail

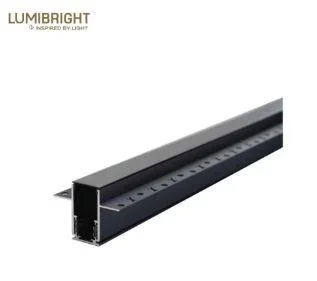

Lumibright Ilume-dim Series 2M Recessed Magnetic Track LBTMGA36

LBTMGA36 · 2m sections for a 6m run

×3

Connector

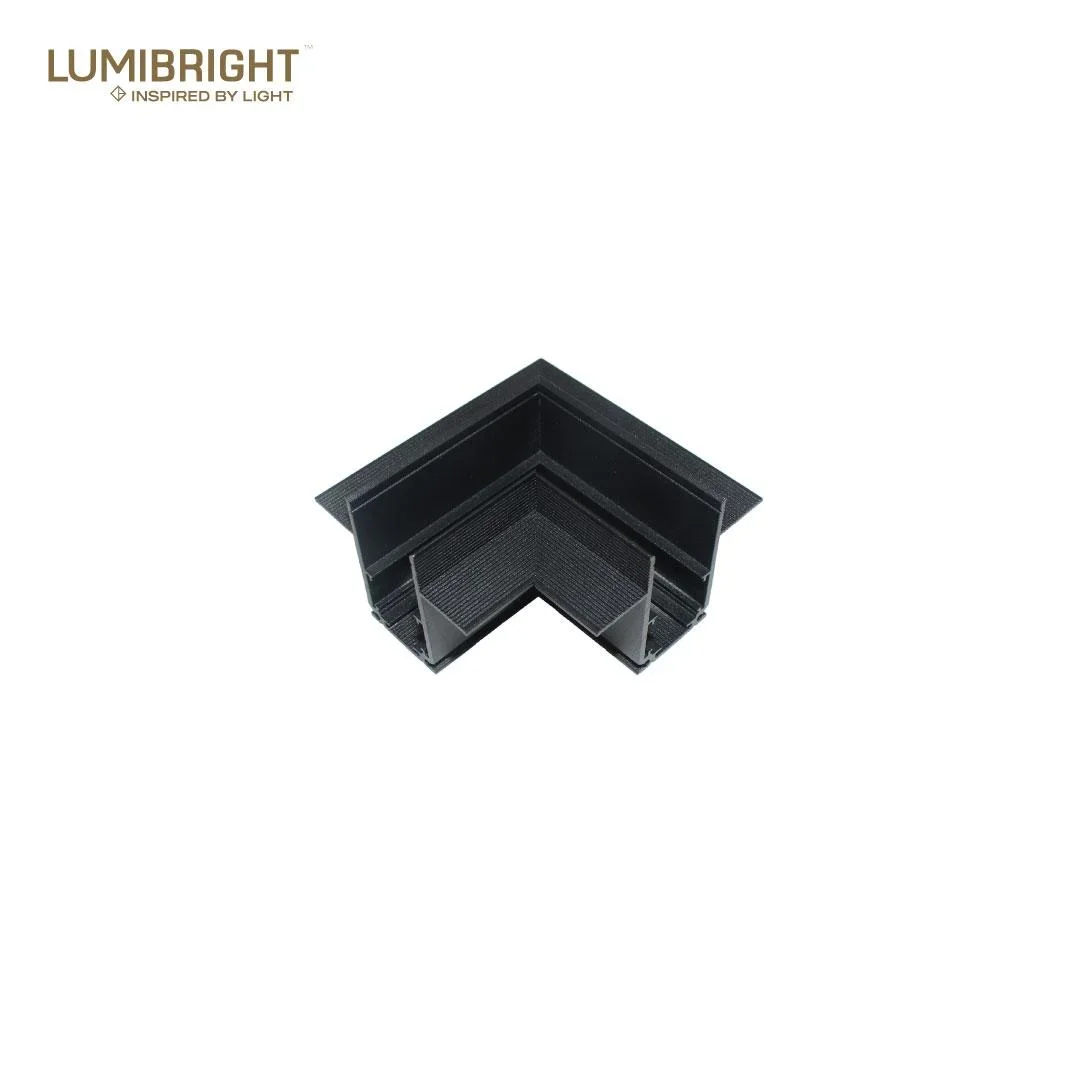

Lumibright Ilume-dim Series 90°CORNER Connector For Recessed Magnetic Track

LBTMGA21 · direction-change piece — confirm the layout with our team

×2

End cap

Lumibright Ilume-dim Series End Cap For Magnetic Surface Track

LBTMGA18 · one at each end of the run

×2

Quantities are calculated from the run length, head count and connected load with 10% driver headroom. Our team confirms every parts list before quoting.

Complete The System
